Flutter 混合开发系列 包含如下：

• 嵌入原生View-Android
• 嵌入原生View-iOS
• 与原生通信-MethodChannel
• 与原生通信-BasicMessageChannel
• 与原生通信-EventChannel
• 添加 Flutter 到 Android Activity
• 添加 Flutter 到 Android Fragment
• 添加 Flutter 到 iOS

每个工作日分享一篇，欢迎关注、点赞及转发。

平台通信的3中方式

Flutter 与 Native 端通信有如下3个方法：

• MethodChannel：Flutter 与 Native 端相互调用，调用后可以返回结果，可以 Native 端主动调用，也可以Flutter主动调用，属于双向通信。此方式为最常用的方式， Native 端调用需要在主线程中执行。
• BasicMessageChannel：用于使用指定的编解码器对消息进行编码和解码，属于双向通信，可以 Native 端主动调用，也可以Flutter主动调用。
• EventChannel：用于数据流（event streams）的通信， Native 端主动发送数据给 Flutter，通常用于状态的监听，比如网络变化、传感器数据等。

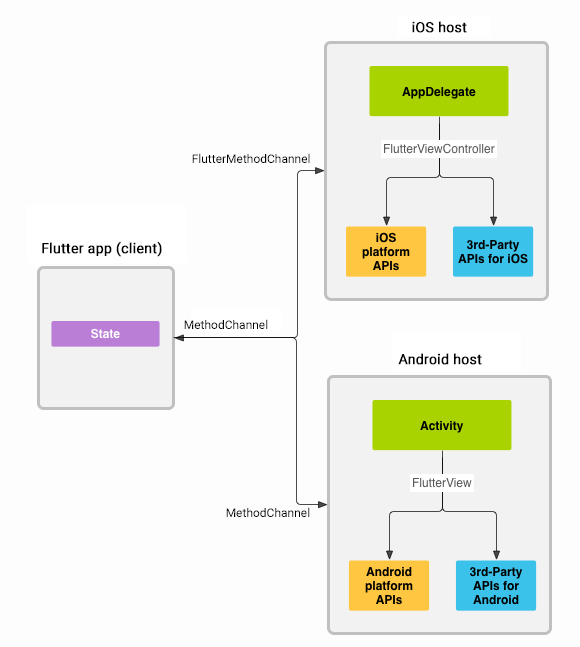

通信架构图

此图为官方的架构图

Flutter 与 Native 端通信是异步的。

通信与平台线程

Native 端主动发送数据给 Flutter时，Native 端代码需要在主线程中执行，Android 端从子线程跳转到主线程方式：

Kotlin 代码：

Handler(Looper.getMainLooper()).post {}

Java 代码：

new Handler(Looper.getMainLooper()).post(new Runnable() {@Overridepublic void run() {}
});

如果可以获取到当前 Activity，也可以使用如下方式：

activity.runOnUiThread {}

iOS 端从子线程跳转到主线程方式：

Objective-C 代码：

dispatch_async(dispatch_get_main_queue(), ^{});

Swift 代码：

DispatchQueue.main.async {}

MethodChannel

Flutter 端

Flutter 端创建 MethodChannel 通道，用于与原生端通信：

var channel = MethodChannel('com.flutter.guide.MethodChannel');

com.flutter.guide.MethodChannel 是 MethodChannel 的名称，原生端要与之对应。

发送消息：

var result = await channel.invokeMethod('sendData',{'name': 'laomeng', 'age': 18})

• 第一个参数表示method，方法名称，原生端会解析此参数。
• 第二个参数表示参数，类型任意，多个参数通常使用Map。
• 返回 Future，原生端返回的数据。

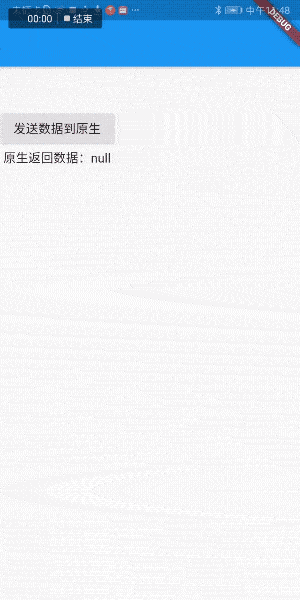

完整代码：

class MethodChannelDemo extends StatefulWidget {@override_MethodChannelDemoState createState() => _MethodChannelDemoState();
}class _MethodChannelDemoState extends State<MethodChannelDemo> {var channel = MethodChannel('com.flutter.guide.MethodChannel');var _data;@overrideWidget build(BuildContext context) {return Scaffold(appBar: AppBar(),body: Column(children: [SizedBox(height: 50,),RaisedButton(child: Text('发送数据到原生'),onPressed: () async {var result = await channel.invokeMethod('sendData', {'name': 'laomeng', 'age': 18});var name = result['name'];var age = result['age'];setState(() {_data = '$name,$age';});},),Text('原生返回数据：$_data')],),);}
}

Android 端

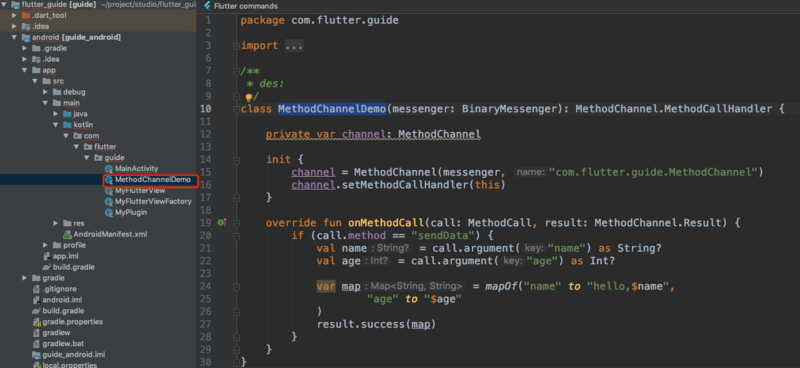

android 下创建 MethodChannelDemo：

package com.flutter.guideimport io.flutter.plugin.common.BinaryMessenger
import io.flutter.plugin.common.MethodCall
import io.flutter.plugin.common.MethodChannel/*** des:*/
class MethodChannelDemo(messenger: BinaryMessenger): MethodChannel.MethodCallHandler {private var channel: MethodChannelinit {channel = MethodChannel(messenger, "com.flutter.guide.MethodChannel")channel.setMethodCallHandler(this)}override fun onMethodCall(call: MethodCall, result: MethodChannel.Result) {}
}

onMethodCall 方法在 Flutter 端调用 invokeMethod 方法回调，解析方法如下：

override fun onMethodCall(call: MethodCall, result: MethodChannel.Result) {if (call.method == "sendData") {val name = call.argument("name") as String?val age = call.argument("age") as Int?var map = mapOf("name" to "hello,$name","age" to "$age")result.success(map)}
}

• call.method 字符串就是 invokeMethod 方法传入的 method。
• call.argument 是 invokeMethod 传入的参数，由于 Flutter 端传入的是 Map，所以上面的解析按照 Map 解析。
• result.success() 是返回给 Flutter 的结果。

Flutter 端解析：

var result = await channel.invokeMethod('sendData', {'name': 'laomeng', 'age': 18});
var name = result['name'];
var age = result['age'];

两端的解析要相互对应。

在 MainActivity 启动：

class MainActivity : FlutterActivity() {override fun configureFlutterEngine(flutterEngine: FlutterEngine) {super.configureFlutterEngine(flutterEngine)MethodChannelDemo(flutterEngine.dartExecutor.binaryMessenger)}
}

iOS 端

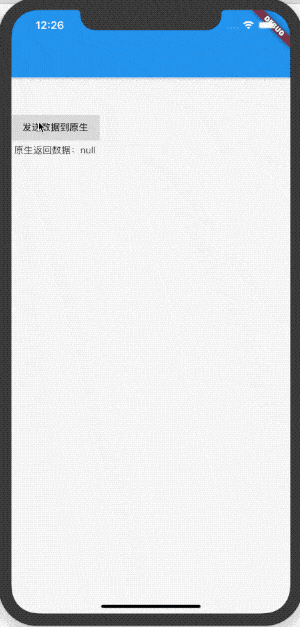

ios 下创建 MethodChannelDemo，按如下方式：

import Flutter
import UIKitpublic class MethodChannelDemo {init(messenger: FlutterBinaryMessenger) {let channel = FlutterMethodChannel(name: "com.flutter.guide.MethodChannel", binaryMessenger: messenger)channel.setMethodCallHandler { (call:FlutterMethodCall, result:@escaping FlutterResult) inif (call.method == "sendData") {if let dict = call.arguments as? Dictionary<String, Any> {let name:String = dict["name"] as? String ?? ""let age:Int = dict["age"] as? Int ?? -1result(["name":"hello,\(name)","age":age])}}}}
}

在 AppDelegate 启动：

import UIKit
import Flutter@UIApplicationMain
@objc class AppDelegate: FlutterAppDelegate {override func application(_ application: UIApplication,didFinishLaunchingWithOptions launchOptions: [UIApplication.LaunchOptionsKey: Any]?) -> Bool {let controller : FlutterViewController = window?.rootViewController as! FlutterViewControllerMethodChannelDemo(messenger: controller.binaryMessenger)GeneratedPluginRegistrant.register(with: self)return super.application(application, didFinishLaunchingWithOptions: launchOptions)}
}

原生端主动发送消息给Flutter

Flutter 端接收数据

@override
void initState() {super.initState();channel.setMethodCallHandler((call) {setState(() {_nativeData = call.arguments['count'];});});
}

Android 发送数据

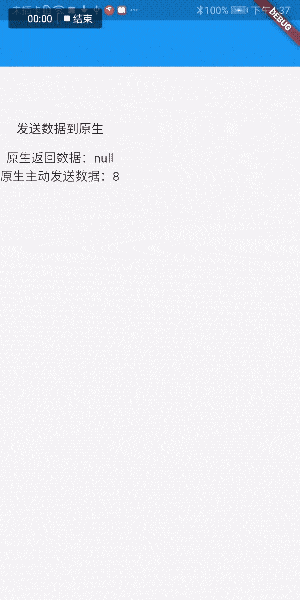

原生端启动定时器，每隔一秒向 Flutter 发送数据，Android 端代码：

class MethodChannelDemo(var activity: Activity, messenger: BinaryMessenger) : MethodChannel.MethodCallHandler {private var channel: MethodChannelprivate var count = 0init {channel = MethodChannel(messenger, "com.flutter.guide.MethodChannel")channel.setMethodCallHandler(this)startTimer()}fun startTimer() {var timer = Timer().schedule(timerTask {activity.runOnUiThread {var map = mapOf("count" to count++)channel.invokeMethod("timer", map)}}, 0, 1000)}override fun onMethodCall(call: MethodCall, result: MethodChannel.Result) {if (call.method == "sendData") {val name = call.argument("name") as String?val age = call.argument("age") as Int?var map = mapOf("name" to "hello,$name","age" to "$age")result.success(map)}}
}

注意：Android 端发送数据要在主现场中调用，即：

activity.runOnUiThread {var map = mapOf("count" to count++)channel.invokeMethod("timer", map)}

启动修改如下：

class MainActivity : FlutterActivity() {override fun configureFlutterEngine(flutterEngine: FlutterEngine) {super.configureFlutterEngine(flutterEngine)MethodChannelDemo(this,flutterEngine.dartExecutor.binaryMessenger)flutterEngine.plugins.add(MyPlugin())}
}

iOS 发送数据

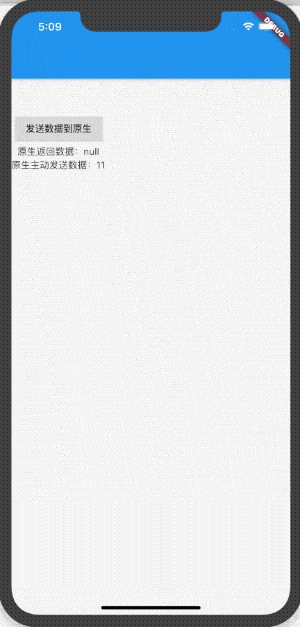

iOS 端启动定时器代码如下：

import Flutter
import UIKitpublic class MethodChannelDemo {var count =  0var channel:FlutterMethodChannelinit(messenger: FlutterBinaryMessenger) {channel = FlutterMethodChannel(name: "com.flutter.guide.MethodChannel", binaryMessenger: messenger)channel.setMethodCallHandler { (call:FlutterMethodCall, result:@escaping FlutterResult) inif (call.method == "sendData") {if let dict = call.arguments as? Dictionary<String, Any> {let name:String = dict["name"] as? String ?? ""let age:Int = dict["age"] as? Int ?? -1result(["name":"hello,\(name)","age":age])}}}startTimer()}func startTimer() {var timer = Timer.scheduledTimer(timeInterval:1, target: self, selector:#selector(self.tickDown),userInfo:nil,repeats: true)}@objc func tickDown(){count += 1var args = ["count":count]channel.invokeMethod("timer", arguments:args)}
}
