Reference

参考号

Date 日期

Provided to 提交至

NO-01 (Web meetings 2020)

2020.01.24

AG 28

Standard 标准

Subclause(s) 条款

Keywords 关键词

IEC 60335-2-23: Edition 6.1

24.2

Swivel connection in flexible cord 电源软线中带旋转连接

Question

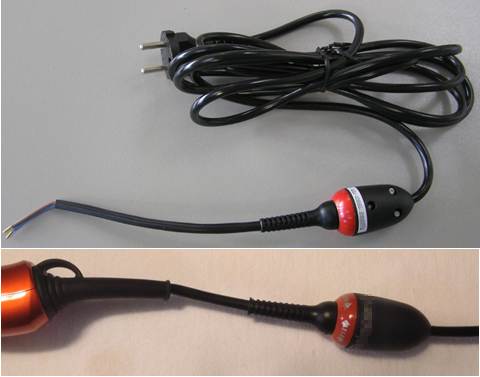

There are hairdryers on the market with a swivel connection in the flexible cord, as shown below.

市场上有电吹风产品在电源软线上带旋转连接结构，如下图所示。

It has been found that a separate certification of a supply cord with swivel connection was made back in 2009 ( acc. to 60335-1/60335-2-23), and it is assumed that products with this construction have been on the market since then.

早在2009年一种可旋转连接的电源软线就进行了单独认证(根据 60355 -1/ 60355 -2-23)，并假定该结构的产品已在市场上销售。

The swivel connection is placed in the cord close (approx. 20 cm) to the appliance, in order to be able to perform its intended function. Due to this placement the component will not be subjected to more severe mechanical impacts than the appliance itself (will not be stepped on) and will during testing of an appliance be subjected to the impact tests as for the appliance itself, i.e. spring hammer test and drop test of 21.101.

旋转接头设置在距离器具软线末端处大约20 cm的地方，以能够执行其预期的功能。由于这种设置组件没有经受比器具本身更严重的机械冲击 (不会被踩到)和测试期间的器具将经受跟器具本身一样的冲击测试,例如弹簧冲击测试和21.101条的跌落测试。

1：Is this construction acceptable with reference to 24.2 of IEC 60335-1:2010: edition 5.1?

根据IEC 60335-1:2010 5.1版的24.2条要求，这种结构可以接受吗?

2：If yes to 1, is it acceptable with reference to IEC 60335-1: edition 5.2, which added “and the like” in 24.2? Or was this addition intended to cover any kind of component in the flexible cord?

如果1是可以接受，参照IEC 60335-1: edition 5.2，在24.2中增加了“及类似的”，它是否可以接受?还是说，这种增加是为了包括软线中的任何一种组件?

AG 28 Answer

This is an acceptable construction. There are no additional safety issues related to this construction, in addition to those being present if the swivel was placed at the end of the appliance.

这是一个可以接受的结构。这种结构不存在与此相关的其他安全问题，如果旋转接头放置在器具的末端则存在这些问题。

In addition:

此外：

●if the intention was to cover any kind of component in the flexible cord the requirement of 24.2 should simply say so. It would then not be necessary to specify any specific components

如果目的是覆盖软线中的任何一种组件，24.2的要求应简单说明。这样就没有必要具体说明任何具体的组成部分。

●the swivel shall comply to all specific requirements in 60335-1 and 60335-2-23.

旋转接头应符合60335-1和60335-2-23中的所有特殊要求。

●by looking at 2-17 and 2-32, which accept switches and controls in the cord, there are no additional mechanical requirements given, and it seems the main issue is to avoid contact with the floor

通过查看IEC 60335-2-17和2-32，它们接受电源线上的开关和控制，没有给出额外的机械要求，似乎主要问题是避免接触地面。

● if the supply cord with a swivel 10cm from an end is replaced, the result would be complying construction because a swivel is not required

如果更换了距离末端10cm的带旋转头的电源线，结果将符合结构要求，因为不需要旋转电源线。

●there is no known information from the market about problems with this construction, after at least 10 years of sale

在销售了至少10年之后，从市场上没有关于这种结构存在问题的已知信息

It is considered that a revision/clarification of this requirement in the standard is needed. It should specify any additional mechanical requirements (if/when necessary) and possibly other changes necessary to cover components in the flexible cord.

我们认为有必要对标准中的这一要求进行修订/澄清。它应该说明任何附加的机械要求(如果/当必要时)和可能的其他必要的变化，以覆盖软线中的部件。

TC 61 Decision

Confirmed

确认。
